Here is a project on How to implement slam in ROS. This project explains how to interface with various sensors and actuators as well as how to develop your project step by step in the simulator called Gazebo. We assume basic familiarity with ROS.This blog is heavily influenced from Programming Robots with ROS book from Morgan Quigley which I highly recommend.

step 1:

create a wander bot that scans any obstacles around it and avoids it

step 1.1: mkdir -p ~/wanderbot_ws/src

step 1.2: cd ~wanderbot_ws/src

step 1.3: catkin_init_workspace

step 1.4: cd ~/wanderbot_ws/src

step 1.5: catkin_create_pkg wanderbot rospy geometry_msgs sensor_msgs

this would create a package in your catkin_ws called wanderbot. Inside the package notice two files

1.CMakeLists.txt : a starting point for the build script for this package

2.package.xml: a machine-readable description of the package, including details such as its name, description, author, license, and which other packages it depends on to build and run

Now inside the src of the package wanderbot write a python program that

  1. has a publisher node to publish the cmd velocity to the wanderbot. The cmd velocity would be of type Twist

     from geometry_msgs.msg import Twist
 cmd_vel_pub = rospy.Publisher('cmd_vel', Twist, queue_size=1)

    Here we publish to the topic cmd_vel messages of type Twist and queue size=1 tells rospy to buffer 1 outgoing msg. In case the node sending the messages is transmitting at a higher rate than the receiving node(s) can receive them, rospy will simply drop any messages beyond the queue_size

  2. publish message into this topic cmd_vel at 10 hz per second so as to not to send too many msgs

    rate = rospy.Rate(10)
while not rospy.is_shutdown():
  .....

  rate.sleep()

  3. Messages of type Twist can be published that it then received by a subscriber node that run on the robot.

    msg definition of Twist:

    # This expresses velocity in free space broken into its linear and angular parts.
Vector3 linear
Vector3 angular

    so you can set a forward velocity of 0.5 as follows:

green_light_twist = Twist()
green_light_twist.linear.x = 0.5

  1. To scan for any obstacles we use the laser can on boarded on the turtle-bot robot. It gives a linear vector of ranges from the robot to the nearest obstacles in various directions

    # Single scan from a planar laser range-finder
Header header            # timestamp in the header is the acquisition time of
                         # the first ray in the scan.
                         #
                         # in frame frame_id, angles are measured around
                         # the positive Z axis (counterclockwise, if Z is up)
                         # with zero angle being forward along the x axis

float32 angle_min        # start angle of the scan [rad]
float32 angle_max        # end angle of the scan [rad]
float32 angle_increment  # angular distance between measurements [rad]

float32 time_increment   # time between measurements [seconds] - if your scanner
                         # is moving, this will be used in interpolating position
                         # of 3d points
float32 scan_time        # time between scans [seconds]

float32 range_min        # minimum range value [m]
float32 range_max        # maximum range value [m]

float32[] ranges         # range data [m] (Note: values < range_min or > range_max should be discarded)
float32[] intensities    # intensity data [device-specific units].  If your
                         # device does not provide intensities, please leave
                         # the array empty.

We can calculate the bearing as:

bearing = msg.angle_min + i * msg.angle_max / len(msg.ranges)

We can calculate the nearest obstacle directly in front of the robot by fetching the middle elements of the ranges

range_ahead = msg.ranges[len(msg.ranges)/2]

  1. Write a subscriber to the Laser Scan data we receive from turtle bot
from sensor_msgs.msg import LaserScan
def scan_callback(msg):
  range_ahead = msg.ranges[len(msg.ranges)/2]
  print "range ahead: %0.1f" % range_ahead

scan_sub = rospy.Subscriber('scan', LaserScan, scan_callback)

  1. next we can write a obstacle avoidance logic on basis of following psedo-code:

    if range_ahead < 0.8:
    publisher send a twist of velocity 0 and non-zero angular velocity
else:
     publisher send a twist of velocity non zeros and zero angular velocity

  2. You can run it like

    roslaunch turtlebot_gazebo turtlebot_world.launch

chmod +x <your pythonfile>.py
/<your pythonfile>.py cmd_vel:=cmd_vel_mux/input/teleop

Keyboard to Move your Robot

  1. Create a node that read the keyboard input.Make a publisher that forwards the read keyboard into a topic called keys.

    How to do it in code

    import sys,select,tty,termios

#get current attribute/setting of terminal
old_attr = termios.tcgetattr(sys.stdin)

#set the setting so as to read every character and not wait till full line
tty.setcbreak(sys.stdin.fileno())

key_pub = rospy.Publisher('keys',String,queue_size=1)

if select.select([sys.stdin],[],[],0)[0]==[sys.stdin]:
        key_pub.publish(sys.stdin.read(1))

#reset back to the original setting
termios.tcsetattr(sys.stdin,termios.TCSADRAIN,old_attr)

  2. Another node that subscribe to the keys and publishes a twist

key_mapping = {'w':[0,1],'x':[0,-1],
               'a':[-1,0],'d':[1,0],
               's':[0,0]}

g_last_twist = None
def keys_cb(msg,twist_pub):
    global g_last_twist
    if len(msg.data) == 0 or not key_mapping.has_key(msg.data[0]):
        return

    vels = key_mapping[msg.data[0]]
    g_last_twist.angular.z = vels[0]
    g_last_twist.linear.x = vels[1]

rospy.Subscriber('keys',String,keys_cb,twist_pub)

# define publisher
twist_pub = rospy.Publisher('cmd_vel',Twist,queue_size=1)
twist_pub.publish(g_last_twist)

Debug TIPS

  1. To discover topic data : rostopic info cmd_vel

    This will print information about the topic publishers and subscribers,as well as stating that the cmd_vel topic is of type geometry_msgs/Twist .

  2. rosmsg show geometry_msgs/Twist

    >>> geometry_msgs/Vector3 linear

    float64 x

    float64 y

    float64 z

    geometry_msgs/Vector3 angular

    float64 x

    float64 y

    float64 z

  3. To plot in real time : rqt_plot cmd_vel/linear/x cmd_vel/angular/z

Parameter Server in ROS

a parameter server is a generic key/value store. We can pass parameter from cmdline while starting the program

./keys_to_twist_parameterized.py _linear_scale:=0.5 _angular_scale:=0.4

and then you can use fetch the parameters from inside the program using

if rospy.has_param('~linear_scale'):
  g_vel_scales[1] = rospy.get_param('~linear_scale')

It is a good idea to ramp up the velocity instead of passing +- a target velocity which can be done like

def ramped_vel(v_prev, v_target, t_prev, t_now, ramp_rate):
  step = ramp_rate * (t_now - t_prev).to_sec()
  sign = 1.0 if (v_target > v_prev) else -1.0
  error = math.fabs(v_target - v_prev)
  if error < step: # we can get there within this timestep-we're done.
  return v_target
  else:
  return v_prev + sign * step # take a step toward the target


def ramped_twist(prev, target, t_prev, t_now, ramps):
  tw = Twist()
  tw.angular.z = ramped_vel(prev.angular.z, target.angular.z, t_prev,
t_now, ramps[0])
  tw.linear.x = ramped_vel(prev.linear.x, target.linear.x, t_prev,
t_now, ramps[1])
  return tw

def send_twist():
  global g_last_twist_send_time, g_target_twist, g_last_twist,\
g_vel_scales, g_vel_ramps, g_twist_pub
  t_now = rospy.Time.now()
  g_last_twist = ramped_twist(g_last_twist,     g_target_twist,
  g_last_twist_send_time, t_now, g_vel_ramps)
  g_last_twist_send_time = t_now
  g_twist_pub.publish(g_last_twist)

To drive the Robot using keyboard

cd catkin_ws
source devel/setup.bash

#terminal 1
roslaunch turtlebot3_gazebo turtlebot3_world.launch

#terminal 2
python key_publisher.py

#terminal 3
python keys_to_twist.py

Visualize using RVIZ

rviz stands for ROS visualization. It is a general purpose 3D visualization environment for robots,sensors and algorithm.

Few fun facts about rviz

  1. rviz live in package also called rviz

  2. all forms of data are attached to a frame of reference. camera on turtlebot is attached to a reference frame defined relative to the center of the turtlebot’s mobile base. odom is taken where robot is powered on.

  3. Since all our data must be visualize wrt to a frame of reference.We must select this frame of reference in the global options/Fixed Frame

    Tf topic primer

    We must publish our frame of references relation over time on this topic.rviz also uses this topic to finds different frames. Why do we need this? because

    A robotic system typically has many 3D coordinate frames that change over time, such as a world frame, base frame, gripper frame, head frame, etc. tf keeps track of all these frames over time, and allows you to ask questions like:

    • Where was the head frame relative to the world frame, 5 seconds ago?

    • What is the pose of the object in my gripper relative to my base?

    • What is the current pose of the base frame in the map frame?

    Add these line to your turtlebot 3 launch file to publish proper tf messages

    <!-- Modified lines in the orgiginal package-->

<node name="joint_state_publisher" pkg="joint_state_publisher" type="joint_state_publisher"> <param name="use_gui" value="TRUE" /> </node>

<node name="robot_state_publisher" pkg="robot_state_publisher" type="robot_state_publisher" />

  4. rviz has a no of panels and plugins that can be configured. after configuring,rviz can be saved , and loads automatically when you open it next time

  5. you can add plugins like Image plugin to visualize what your camera see(you need to put the camera feed topic) or visualize

Building Maps of the World

building a map would be simple: you could take the objects detected by the sensors, transform them into some global coordinate frame (using the robot’s position and some geome‐try), and then record them in a map (in this global coordinate frame).

WRONG !!!

Because no sensor is perfect and robot does not know with full confidence how it is moving ( supposed the wheels slipped a little)

ROSBAG

rosbag is a tool that lets us record messages and replay them later.

why use them ?

1. debugging new algorithms, since it lets you present the same data to the algo‐ rithm over and over, which will help you isolate and fix bugs.

  1. You can record some sensor data from the robot with rosbag ,then use this recorded data to work on your code.

To record:

>> rosbag record scan tf #saves in YYYY-MM-DD-HH-mm-ss.bag

>>rosbag record -O foo.bag scan tf

#saves in foo.bag

>>rosbag record -o foo scan tf #saves in foo_2015-10-05-14-29-30.bag

>> rosbag record -a

to play the saved msgs

>> rosbag play --clock foo.bag

--clock flag causes rosbag to publish clock time which ll be important when we come to build our maps

we ll build maps with the slam_gmapping node from the gmapping package. The slam_gmapping node uses an implementation of the GMapping algorithm. GMapping uses a Rao-Blackwellized particle filter to keep track of the likely positions of the robot, based on its sensor data and the parts of the map that have already been built.

We’re going to drive the robot around and save the sensor data to a file using rosbag . We’re then going to replay this sensor data and use slam_gmapping to build a map for us.

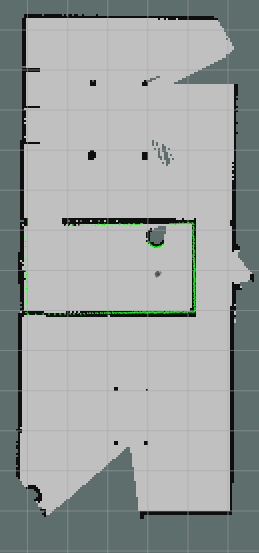

to create a map,run the following

#terminal 1 # start the turtle bot in  the world
roslaunch turtlebot3_gazebo turtlebot3_house.launch

#terminal 2: start the gmapping node. Run this either directly or record the data first in a ros bag and then run it
roslaunch turtlebot3_slam turtlebot3_slam.launch slam_methods:=gmapping

#terminal 3 : run rhe robot
roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch
